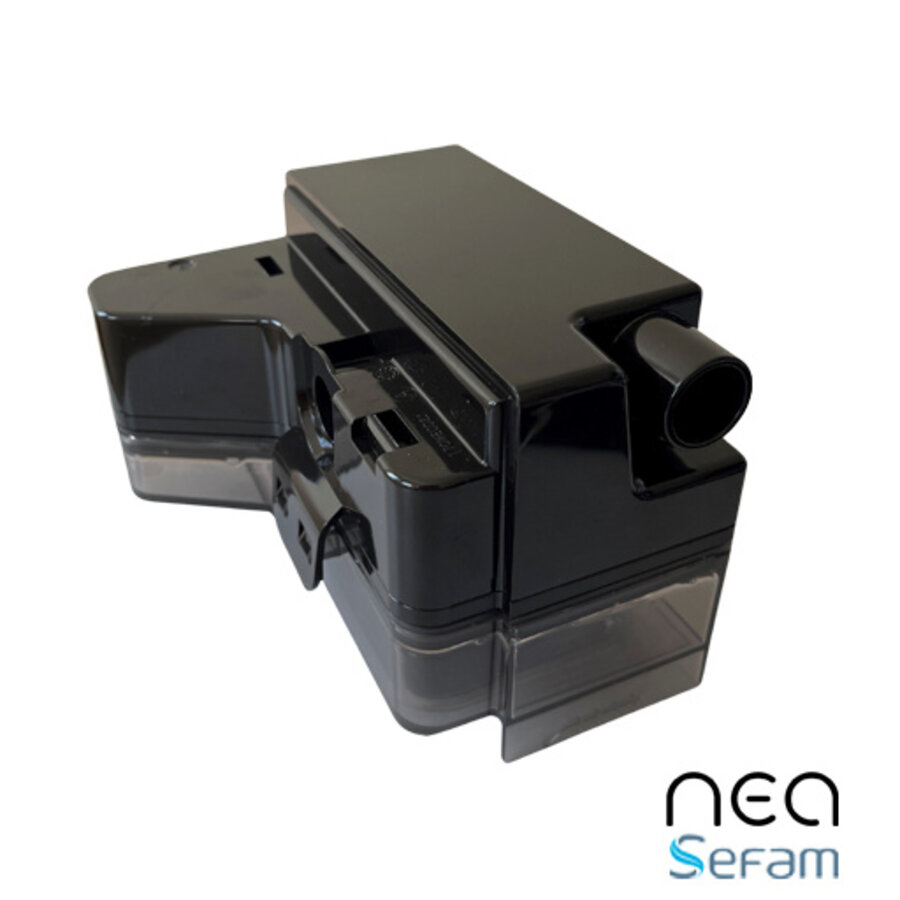

The Sefam Néa H2O heated humidifier has been specially designed to integrate perfectly with Sefam Néa CPAP/PPC devices. It aims to limit undesirable effects such as dry mucous membranes or condensation in the circuit.
Improved respiratory comfort : Humidification helps reduce dryness in the nose, throat and airways, making therapy more pleasant.
Fine humidity control : It has 10 adjustable levels , allowing the user to adapt the intensity of humidification according to the room temperature, the season, or their own needs.
Condensation reduction : The humidifier technology minimizes water formation in the pipe (condensation) thanks to well-calibrated heating.
Easy maintenance : The water tank is removable, easy to fill, and designed for easy cleaning. Some models are dishwasher safe, depending on the retailer.
“Plug & play” integration : The humidifier mounts directly onto the Nea case by replacing the side panel, without the need for an additional power supply.
Mobile use : Its design remains compact and relatively light once assembled, making it compatible with transport or travel.
Technical specifications:
Characteristic
Value / Detail
Compatibility
CPAP/PPC Sefam Néa
Kind
Heated humidifier
Temperature/Humidity Settings
10 different levels.
Water tank
Removable, designed for easy cleaning (and sometimes dishwasher safe)
Warm-up time
45 minutes to reach its nominal temperature.
Maximum humidification rate
> 10 mg H₂O / L at max setting, if the leakage is < 45 L/min.
Pressure drop
Approximately 0.3 cm H₂O at 1 L/s.
Maximum pressure supported
Up to 20 cmH₂O (which corresponds to the range of the Néa).
Inhaled air temperature (outlet)
Up to a maximum of 43°C.
Temperature stability
± 2 °C (for certain flow conditions) according to the manual.
Nominal capacity (tank)
~9.75 ml / kPa when the reservoir is empty, and 6.92 ml / kPa when it is full.
Néa device temperature range with humidifier
+5°C to +35°C.
Weight added to the Néa
Adding the humidifier brings the total weight of the machine to approximately 1.3 kg (compared to ~1.0 kg without).
